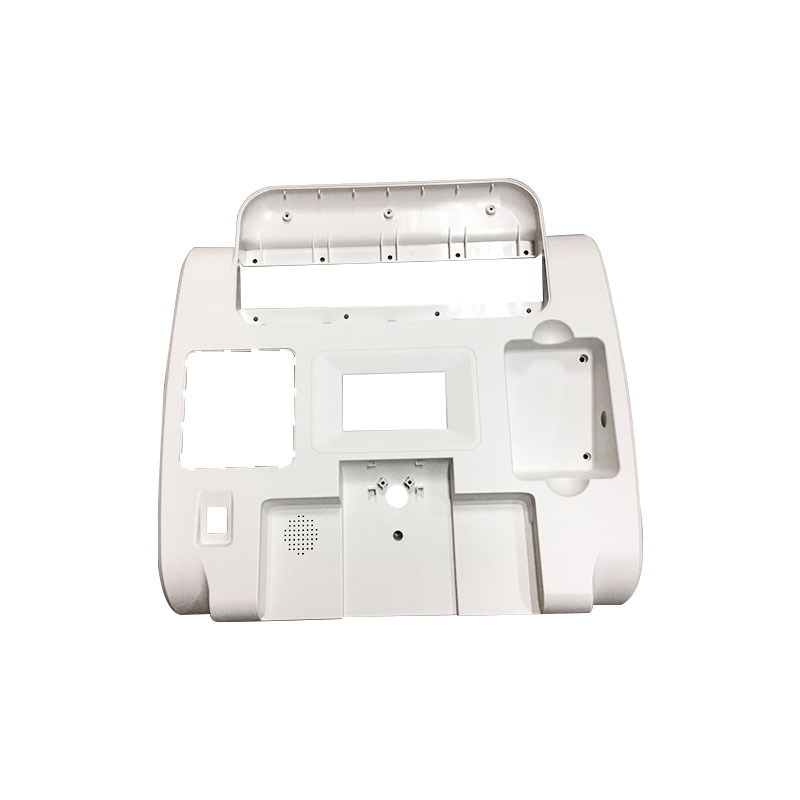

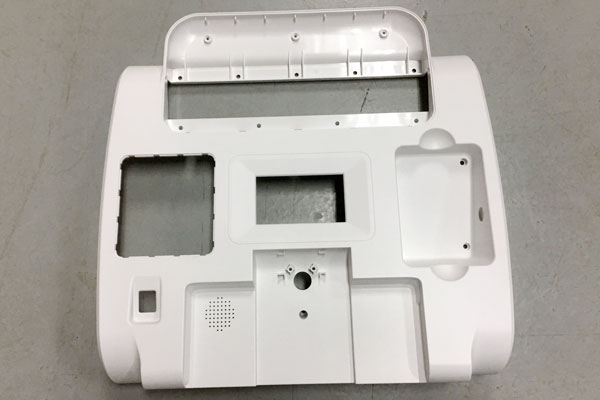

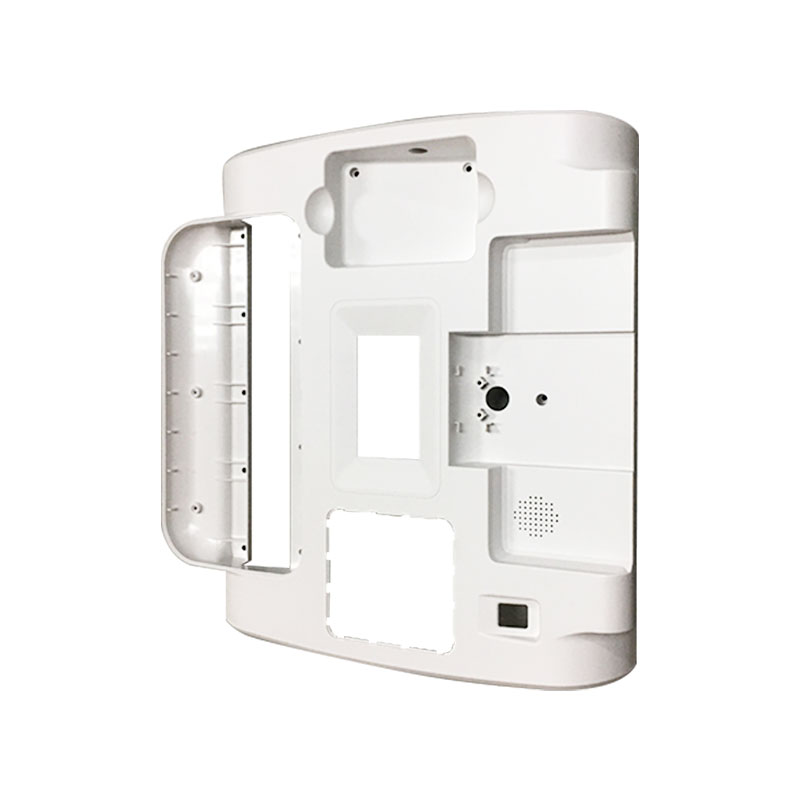

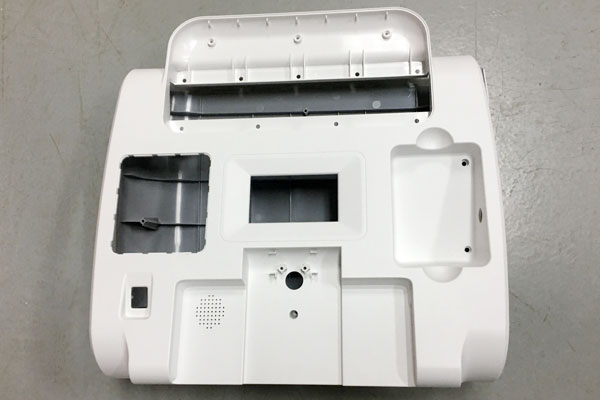

Product Name: Immunoassay analyzer
Product size: 516*507*110mm
Part visible surface: Texturing
Product material: PC+ABS
Shrinkage rate %: 0.6
Cavity quantity: 1*1
Injection machine type: 550T
Cycle time: 47S
Product Take out way: Manipulator/Cupula
Cooling system: cold runner
Cavity and core steel: 718H
Mold base standard:  GE
Terminal Customer: Maccura
Export: America

◇◆ Product Features

In this set of products, the surface shell mold can adopt large nozzle mold or hot nozzle to cool the flow channel mold, which can not only meet customer requirements but also reduce the cost of the mold;
Among them, the way of glue injection is diving, but the glue inlet is different from the common conical shape but similar to duck mouth shape, which can reduce the pressure of glue injection and prevent shrinkage lines.

This product made in ABS+PC material, which can improve the heat resistance, impact resistance and tensile properties of ABS and enable ABS to be used in high-end fields.
On the other hand, it can reduce the melt viscosity of PC, improve the fluidity of PC, improve its processing performance, reduce the internal stress of products, reduce the sensitivity of impact strength to gap and thickness, so that PC can be used for the manufacture of thin-wall long process products.
