quick delivery custom plastic enclosures electronics manufacturer for electronic components Euromicron Mould

quick delivery custom plastic enclosures electronics manufacturer for electronic components Euromicron Mould

Product Name
Telecom set-top box
Product size
396*56*45mm
Material
ABS+PC
Cavity
1*2
Cycle time
45S
Customer
TOPFIELD
Export
Nethersland
Product Comparison
Euromicron's cnc service is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.Compared with other same kind of products in the market, Euromicron's cnc service is equipped with the following outstanding advantages.
Product Details
Next, Euromicron will present you with the specific details of cnc service.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.cnc service, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.
Company Advantages
1. Euromicron Mould electronic parts is fabricated from optimum quality raw materials with superior strength and durability.
2. The product has exceptional quality for long-time performance.
3. The product has a long lifespan, in the long run, reducing the requirements of people for frequent replacements and even carbon emissions.

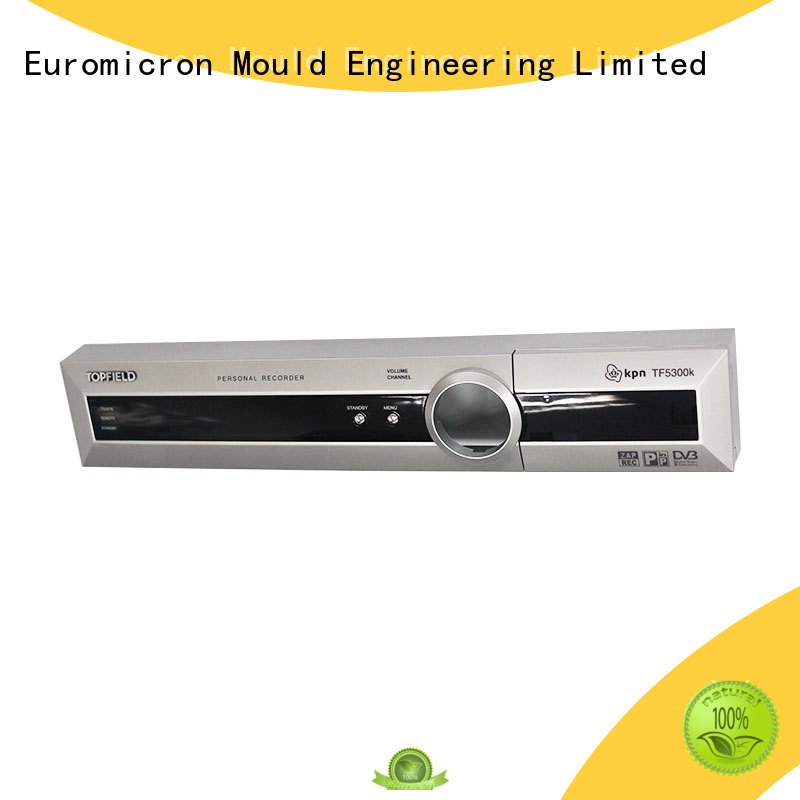

This cover is part of an telecom set-top box.
The appearance surface has dimension of 396X56X45mm.There are one round opening ¢35 and one rectangular opening 20X150mm.Also there are many boss and rid in high side.There is undercut on right wall of long side.



◇◆ Product Features


Mold design

We set sprue bushing on round opening,when fill with sub gate from both sides.Ejector sleeve need locate on boss to help release part.Pin or insert for high side rib to help air venting,also for easily manufacture or EMD process.A slider would be need for side undercut.Since all outside surface are visible,no slider split line is allowed.This mean a tunnel slider would be needed on core side.Mold base size would be 600X400mm with height 350mm.The design of the mold provide for simultaneous opening of the two parting lines with the aid of two racks and a pinion for each side.As it is essential that no gate marks show on the front of the molded parts,injection had to take place on the inside.

Cooling

This cover transfer heat quickly to mold surfaces.so that increased outlay on the cooling system is worthwhile in molds for such parts.Cooling of the core should be given special attention.Also some of the inserts are thin and very high.A beryllium/copper cap with six radial cooing channels is placed on the core insert.These cooling channel require drilling of the center of rube leading to the cap.This drilling weakens the center tube and there is the risk of rupture if the mounting nuts are tightened excessively.Compression spring are provided to permit an exactly defined tightening torque.Coolant is supplied to the cooling channels in the slides via tubes threaded into the slides.Slots in the guide strips allow these tubes to follow the motion of the slides.



Company Features
1. Euromicron Mould Engineering Limited is a competitive producer of electronic parts .
2. The high technology level of Euromicron Mould Engineering Limited is widely recognized in the field of plastic prototype .
3. Euromicron Mould entrepreneurs must strive to achieve the goals of the world's plastic enclosure pioneers! Get price! 'Persistence, Efficiency ' is Euromicron Mould Engineering Limited's motto. Get price!
Packing & Delivery
Packing

CNC package for bare PCB and ESD package for PCBA aasemble with box Package.

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Delivery

Shipping 3-5 days after payment.

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
