plastic prototype injection for electronic components Euromicron Mould

plastic prototype injection for electronic components Euromicron Mould

Product Name
Electronic connector
Product size
35*29.5*26mm
Material
PA9T30GF
Cavity
1*4
Cycle time
40S
Customer
Bitron
Export
Italy
Product Details
Euromicron's die casting mold has excellent performances by virtue of the following excellent details.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.Euromicron insists on the use of high-quality materials and advanced technology to manufacture die casting mold. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
Company Advantages
1. Euromicron Mould injection moldable plastics is well developed using modern machinery and production technology.
2. Customers are guaranteed the highest quality with our quality production facilities.
3. This product has comprehensive functionality and high performance.
4. By expanding overseas market, Euromicron Mould has been playing a more important role in plastic prototype industry.
5. Euromicron Mould Engineering Limited enjoys good reputation at home and abroad.

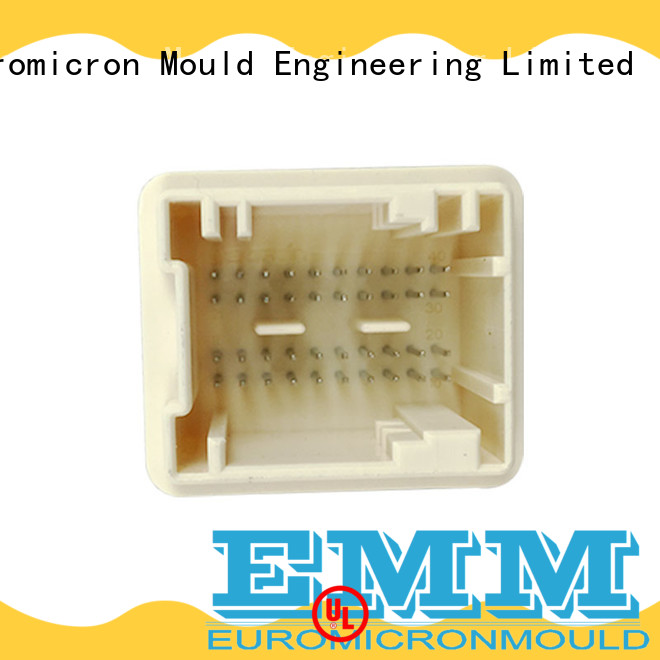

This connector was supposed to be molded in glass-fiber-reinforced,flame-retardant nylon.
It came with size 35X29.5X26mm,with 40pcs pins in center.High rib,hooks and boss on round side.One four cavity mold should employ a mold base dimension 250*230mm,with 280mm height.Steel grade 1.2767 is used for the mold inserts,while grade 1.2312 is employed for mold plates as well as the ejector plate.Steel grade 1.1730 is mused for remaining plate and rails.Thermal insulating plates,which are available in sizes to match the standard mold plates,serve to insulate the mold from the machine platens.



◇◆ Mold design


This part is simple,but need to ensure 40pcs pin locate properly when plastic filling,specially under high pressure flow.To save production cost,we need to cut down cycle time.So two or three even more over-mold inserts need.Injection machine operator no need to set pin one by one into mold.Just need to set in additional insert before molding.When mold open,just need put whole insert with pin into core.Of course,operator need to take part with insert together.The hooks on both sides are undercut,need design for slider or angle lifter.But no slider split line allow in middle surface.So split line should be set on radius of corner.

The molded part is ejected via knockout pins.In addition to providing for ejection.these pins serve to vent the cavity during filling.It is in part for this reason that the knockout pins are located beneath ribs and other deep section of the part.where entrapped air is to be expected.The mold filling pattern during injection of the molding compound as well as the mechanical and thermal aspects of the mold design were simulated and established during the design phase with the aid of appropriate computer programs.
