OEM ODM car moulding lamp source now for merchant

OEM ODM car moulding lamp source now for merchant

Product Name
Auto tank
Product size
495*76*83mm
Material
PA66+30%GF
Cavity
1*2
Cycle time
41S
Customer
Mercedes Benz
Export
Germany
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of OEM ODM car moulding lamp source now for merchant
Product Details
In the production, Euromicron believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods. injection mold is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.
Application Scope
die casting mold produced by Euromicron is mostly used in the following aspects.Euromicron insists on providing customers with reasonable solutions according to their actual needs.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.
Company Advantages
1. The manufacture of Euromicron Mould plastic part design for injection molding covers a wide range of stages. They include rapid prototypes, circuit board fabrication, welding, performance testing, and assembly.
2. The product has high positioning accuracy. During the workpiece fabrication, various geometric elements have been taken as datum reference to guarantee its dimension accuracy.
3. The fabric this product is made of makes it soft and cuddly, and can maintain its original size as time goes on.
4. car moulding produced by Euromicron Mould enjoys a high reputation among customers.
5. Having been tested strictly before shipping, the car moulding produced by Euromicron Mould is of high reputation for its high quality.


OEM ODM car moulding lamp source now for merchant-1
OEM ODM car moulding lamp source now for merchant-2



◇◆ Product Features


OEM ODM car moulding lamp source now for merchant-3

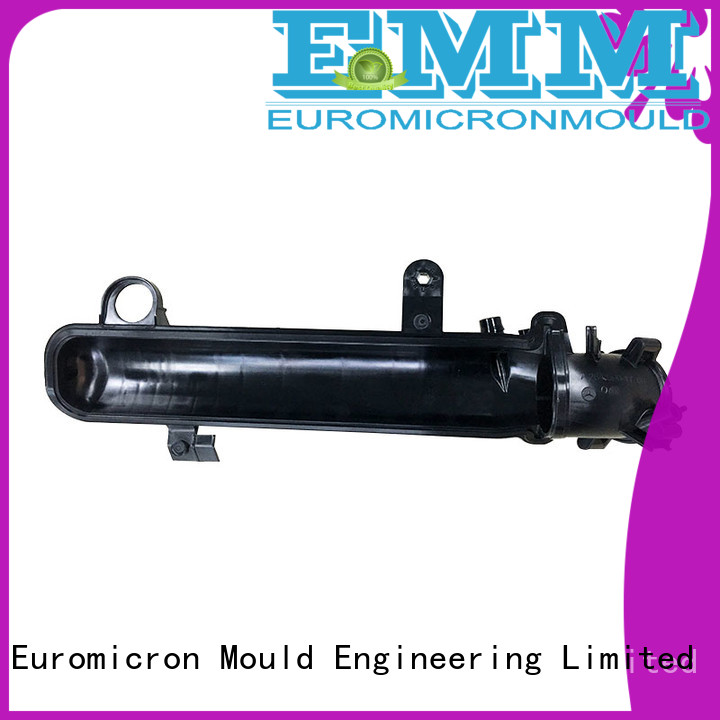

The product is applied in the automobile Mercedes Benz. It is a part of the tank. It works in the high temperature environment. So it is made of the material PA66 with 30% glass fiber. This is a special heat-resistant material. Also it is a high strength engineering material. This composite materials have superiorities in size stability, formability, stretching resistance and impact resistance. This a long product. The length is 495mm. width is 76mm, height is 83mm. it is easy to deflect after injecting. So it is very important to solve deflect issue in the mold.


OEM ODM car moulding lamp source now for merchant-4

The mold is a two-cavities design with hot runner system. The valve gate of the hot runner system is directly on the part. We did mold flow analysis before mold design. Through technical analysis, we can estimate the deformation of the part and find some problems of injection molding. So that we saved some steel for late adjustment about deformation.Meanwhile, we did Some preventive measures for possible problems.

OEM ODM car moulding lamp source now for merchant-5

In this way, we can optimized the mold after trailing shoot until the molding was good. The structure of the part was a lot complex. There were some bosses and hooks at the side of the product. It needed several sliders to formed them. For cooling system, it was very important too. Good cooling system can decrease the deformation of the product and the cycle time. So we designed several sufficient cooling loops for this mold. Not only cooling loops were design in the core insert and cavity insert, but also cooling loops were designed in the sliders and the mold plate.

OEM ODM car moulding lamp source now for merchant-6

In that case, the temperature of the mold can be controlled well. And the product was very stable. The cycle time was about 41 seconds. By controlling the valves of the hot runner system, we can control the volume of each part and the balance of flowing. Because of the plastic material including 30%glass fiber, the steel of forming insert must be harden steel. We choose to use imported steel 1.2344 which hardness was about 52 HRC. The mold ran well. The mold run over 3 hours for testing before delivery to customer. Customer was satisfied the mold.



Company Features
1. Euromicron Mould Engineering Limited has a global advantage in the field of car moulding .
2. The factory production line of Euromicron Mould Engineering Limited are all under international standard.
3. Euromicron Mould Engineering Limited promises that every customer will be served well. Get an offer! Euromicron Mould upholds enterprise development strategies including plastic part design for injection molding and plastic pellets for injection molding . Get an offer! For long-distance transportation, Euromicron Mould Engineering Limited will take measures to protect auto parts fair well. Get an offer!
