OEM ODM auto parts factory handle one-stop service supplier for merchant

OEM ODM auto parts factory handle one-stop service supplier for merchant

OEM ODM auto parts factory handle one-stop service supplier for merchant

Product Name
Door handle
Product size
183*37*30mm
Material
PC+ABS
Cavity
1*2
Cycle time
41S
Customer
Volkswagen
Export
Germany
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. The raw materials of Euromicron Mould injection molding automotive is superior and thus it comes out with high quality. The product stands out with its excellent dimensional consistency
2. This product is a functional package. Its design has a strong influence on consumers' willingness to purchase and maximizes the profitability of the goods. It is produced in the large-scale workshops, making mass production possible
3. auto parts factory has got injection molding automotive performance and is superior to traditional ones. The surface of the product adopts scratch-resistant coating
4. Owing to injection molding automotive , Euromicron Mould Engineering Limited is a company which is famous for it. Company logo can be printed on the surface of the product

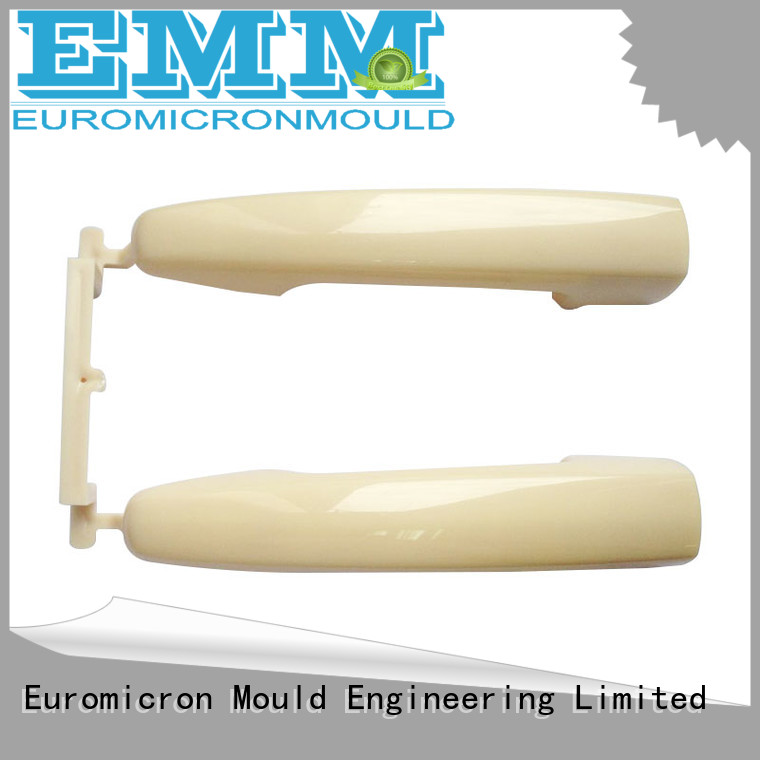

This is a door handle of automobile. The product needs electroplating. The finish is high gloss. The material is PC+ABS with electroplating grade.

OEM ODM auto parts factory handle one-stop service supplier for merchant-1
OEM ODM auto parts factory handle one-stop service supplier for merchant-2


◇◆ Product Features


The mold was built in 2005. It is two-cavity mold. Cold runner system. The part was ejected out by round ejector pin and sleeve ejector. The finish of the cavity is very important. The steel  NAK80 is used in the mold. The polishing grade is A3 (Ra0.032μm). It has high requirements not only for polishing itself but also for surface smoothness, smoothness and geometric accuracy. In order to obtain high-quality polishing effect, the most important thing is to have high-quality polishing tools and accessories such as whetstone, sandpaper and diamond grinding paste. And the choice of polishing process depends on the surface condition after the early processing, such as mechanical processing, edm, grinding and so on.

OEM ODM auto parts factory handle one-stop service supplier for merchant-3

Rough polished is the first step in polishing. After milling, edm, grinding and other processes of the surface can be selected in the speed of 35,000 to 40000rpm rotary surface polishing machine or ultrasonic grinding machine for polishing. Commonly used methods include using Φ3 mm in diameter, WA# 400 wheels to remove white edm layer. Then it is grinded by hand, and the strip is added with kerosene as lubricant or coolant. The general order of use is #180~#240~#320~#400~#600~#800~#1000. Semi-polishing is second step. It mainly use sandpaper. The Numbers of sandpaper are: #400~#600~#800~#1000~#1200~#1500. Fine polishing is the final step. Fine polishing mainly USES diamond abrasive paste. The usual grinding order to get diamonds to mix together with polishing wheels is to get 9 microns (#1800) to 6 microns (#3000) to 3 microns (#8000).

Diamond abrasive paste and polishing wheels can be used to remove the hair marks on #1200 and #1500 sandpaper. The carpeting and diamond paste are then polished to the tune of 1 microns to 1/2 microns to 1 microns to 1 quarter microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns to 1 microns. The polishing process to be over 1 microns (including 1 microns) to the accuracy requirements can be carried out in a clean polishing room at the die processing workshop. For more sophisticated polishing an absolutely clean space is required. Dust, smoke, dandruff and saliva can all be discarded after hours of work to obtain a highly precise polished surface.



Company Features
1. With outstanding quality of injection molding automotive , Euromicron Mould Engineering Limited leads the auto parts factory market development and has created industry benchmarks. We have set up a professional marketing team. With years of market exploration, they are able to respond rapidly to market trends and effectively analyze the customers' needs.
2. Our factory has repleted with many international advanced mechanical facilities. They are mainly applied in automatic production lines. This has greatly promoted the overall productivity and cut labor costs.
3. We have set up a team to manage exports and distribution. With their years of experience in developing markets, they are able to manage well the distribution of our products around the world. Bringing in a set of the first-class infrastructure for waste treatment, we have strong determination to handle environmental issues. These infrastructures will help us handle and dispose of wastewater and waste gases in line with international best practice.
