nissan automotive plastic parts manufacturers harness for businessman Euromicron Mould

nissan automotive plastic parts manufacturers harness for businessman Euromicron Mould

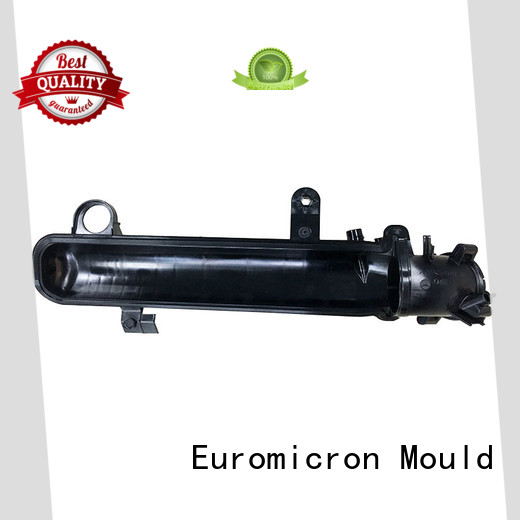

Product Name
Auto tank
Product size
495*76*83mm
Material
PA66+30%GF
Cavity
1*2
Cycle time
41S
Customer
Mercedes Benz
Export
Germany
Enterprise Strength
  • Our excellence comes from the efforts of staff from such departments as R&D department, sales department, design department and production department. There are designers, R&D experts, and after-sales personnel in our company.
  • Euromicron strictly insists on the service concept to be demand-oriented and customer-oriented. We are committed to providing all-round services for consumers to meet their different needs.
  • Euromicron always sticks to our tenet of "quality comes first" by focusing on the quality control, service improvement, and fast response.
  • We have been dedicated to the manufacturing of cnc service for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
  • Since the establishment, our sales network has been continuously expanding to where our sales service is highly appraised by customers at home and abroad. In future, we would like to establish our marketing network overseas and expand the business further.
Company Advantages
1. The design of automobile parts always conveys automotive plastic parts manufacturers concept.
2. This product is antimicrobial. It not only kills bacteria and viruses, but it also keeps fungus from growing, which is important in areas with high humidity.
3. Euromicron Mould Engineering Limited is becoming increasingly popular in automobile parts field.




◇◆ Product Features


The product is applied in the automobile Mercedes Benz. It is a part of the tank. It works in the high temperature environment. So it is made of the material PA66 with 30% glass fiber. This is a special heat-resistant material. Also it is a high strength engineering material. This composite materials have superiorities in size stability, formability, stretching resistance and impact resistance. This a long product. The length is 495mm. width is 76mm, height is 83mm. it is easy to deflect after injecting. So it is very important to solve deflect issue in the mold.


The mold is a two-cavities design with hot runner system. The valve gate of the hot runner system is directly on the part. We did mold flow analysis before mold design. Through technical analysis, we can estimate the deformation of the part and find some problems of injection molding. So that we saved some steel for late adjustment about deformation.Meanwhile, we did Some preventive measures for possible problems.

In this way, we can optimized the mold after trailing shoot until the molding was good. The structure of the part was a lot complex. There were some bosses and hooks at the side of the product. It needed several sliders to formed them. For cooling system, it was very important too. Good cooling system can decrease the deformation of the product and the cycle time. So we designed several sufficient cooling loops for this mold. Not only cooling loops were design in the core insert and cavity insert, but also cooling loops were designed in the sliders and the mold plate.

In that case, the temperature of the mold can be controlled well. And the product was very stable. The cycle time was about 41 seconds. By controlling the valves of the hot runner system, we can control the volume of each part and the balance of flowing. Because of the plastic material including 30%glass fiber, the steel of forming insert must be harden steel. We choose to use imported steel 1.2344 which hardness was about 52 HRC. The mold ran well. The mold run over 3 hours for testing before delivery to customer. Customer was satisfied the mold.
