injection plastic enclosure customized

injection plastic enclosure customized

Part Name
Electronic connector
Part size
18*15*3mm
Raw Material
NYLON+30%GF
Color
RAL9005,Black
Mould Cavity No
16+16
Injection gate
Cold runner
Surface finished
Polishing #600
Product Comparison
Closely following the market trend, Euromicron uses advanced production equipment and manufacturing technology to produce die casting mold. The product receives favors from the majority of customers for the high quality and favorable price.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.Compared with other products in the same industry, Euromicron's die casting mold has the following characteristics.
Company Advantages
1. Euromicron Mould injection moldable plastics is designed as per the consumers' needs and high-quality standards.
2. After many tests and modifications, the product finally achieved the best quality.
3. Euromicron Mould Engineering Limited is known as producing high quality plastic enclosure with competitive price.


Part Name:Electronic connector
Part size:18*15*3mm
Raw Material:NYLON+30%GF
Color:RAL9005,Black
Mould Cavity No.:16+16
Injection gate:Cold runner
Surface finished: Polishing #600
Core &Cavity steel:1.2344, hardness 48~52HRC
Mold component standard:DME or equivalent
Injection machine size:120T
Cycle time:18S
Mold life:300000 shots
Customer:AEC
Export:USA


◇◆ Summary for project running
This product used for electrical connector. And was supposed to be molded in glass-fiber-reinforced, flame-retardant nylon.

There are many small pin holes on part. Hole’s diameter is 0.6mm with 2.2mm distance of each. Dimension tolerance should be within +/-0.01mm.   Mold design-We will make this mold with 2+2cavity, cold runner in to banana gate. To make parts leave on core side, parting line should be on top. And all pin holes location need to be inserted. Because the hole diameter and distance need to keep in strict tolerance. Separated insert make it easy to replace. Need to pay high attention to electrode making and EDM process. We made whole electrode include all pin holes position, then checked by CMM machine, until shown it was made in proper dimension, took to Mirror EDM manufacture.

Injection-Any mismatch or flash in switch(female half) hole would cause male half pin bend, so this request holding pressure not too high. but also guarantee not cause sink mark on outside surface. Although the part and mold is small, enough cooling line still necessary. Because the part quantity in demand is one million each month, we need to cut down cycle time as much as possible. So that we can save production cost.




Company Features
1. Under professional management and strict quality control, Euromicron Mould Engineering Limited is in the vanguard of Euromicron Mould Engineering Limited industry.
2. In personnel training, Euromicron Mould Engineering Limited has plenty of technology-oriented R&D team for plastic enclosure .
3. Euromicron Mould Engineering Limited adheres to the development strategy of injection moldable plastics in its business. Ask online! Practicing the concept of plastic enclosure box is an important part for Euromicron Mould. Ask online!

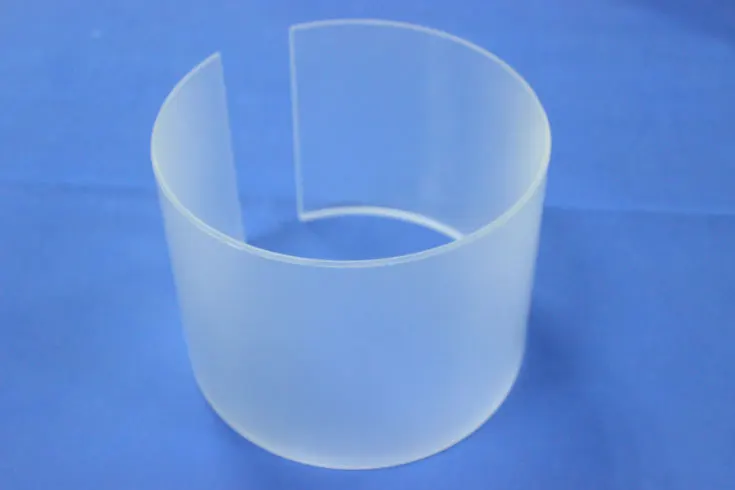

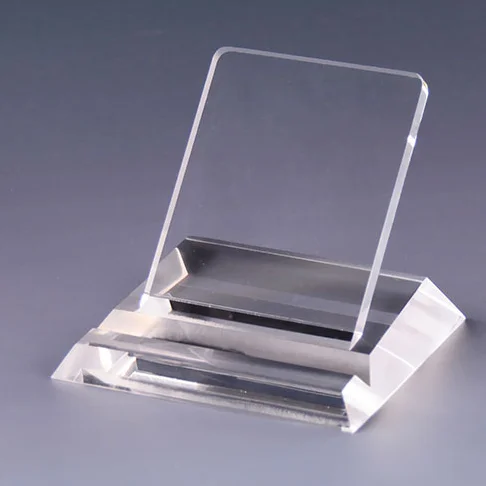

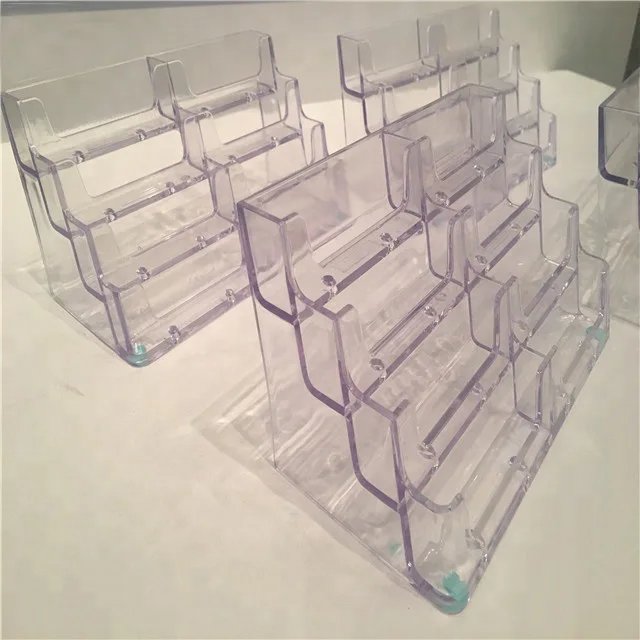

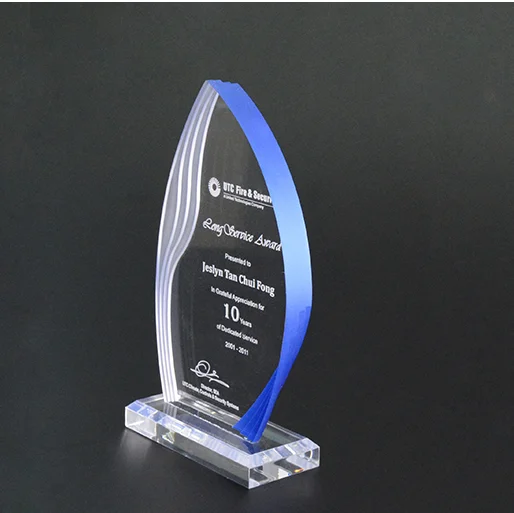

Shenzhen Transparent Acrylic and clear PC PMMA plastic case rapid prototype@futongda machinery
Description
Brief descriptionhigh demand products acrylic mold pmma fabrication CNC machining
high demand products acrylic mold pmma fabrication CNC machining
Product namestainless steel parts
Materialstainless steel
Surface treatmentSandblasting
drawing format we accept IGS,STP,SIDPRT,DXF,DWG,X_T and so on
MOQ1 Sample
Payment Terms T/T,L/C,paypal,Western Union
Delivery Date 3-5workdays, according to the quantity of products

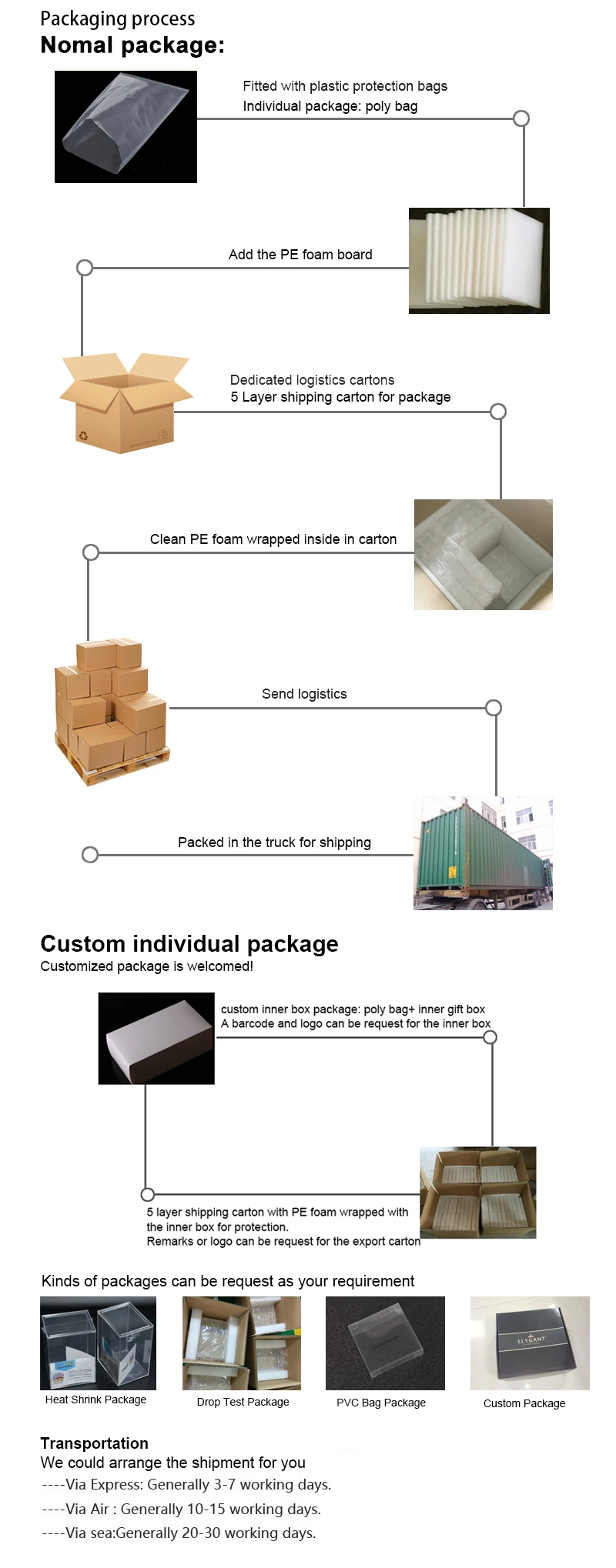

Packing  Single polybag, Foam,Paper carton, Wooden case. or as requests
Logo Can be made as your own logo, your own brand
Product certificationISO9001:2008, CE, RoHS, SGS;
Machinable materialSteel,Brass,Magnesium,Copper,Aluminium,Iron
Stainless steel,Plastic,POM,Titanium Alloy,Carbon fiber,etc.
More surface finish

Color anodized,polishing,sand blasting,satin-finished Zinc plating,Chemical film,Power,Passivation,

Brushing and so on,as you request

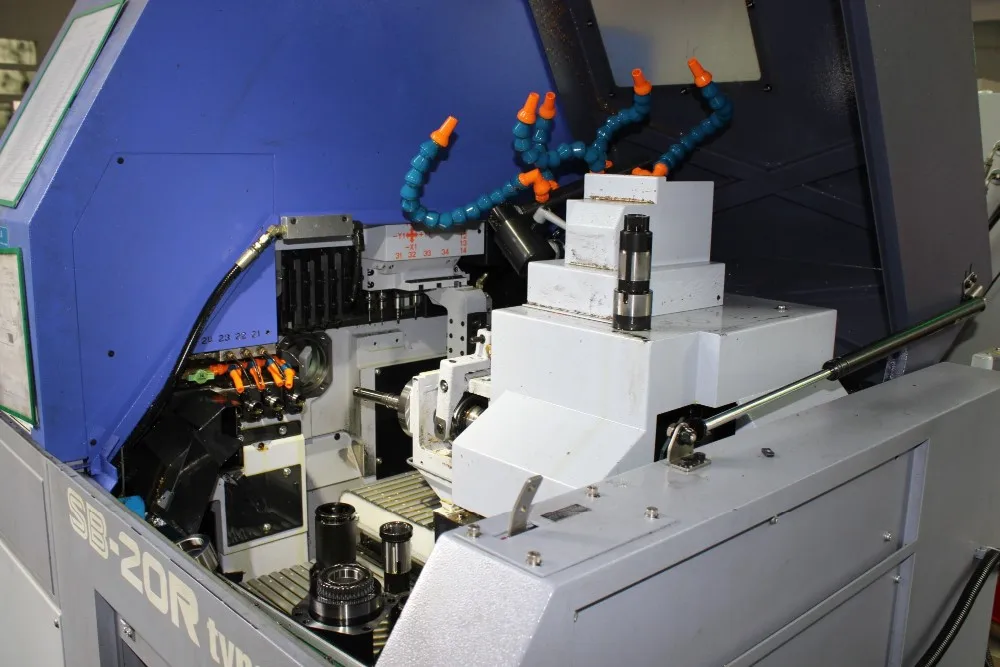

Processing equipments CNC machining center, CNC lathe, grinding machine, automatic lathe mach



High precision; low cost and fast printing speed for samples making



Who we do?
We can do raipid prototype with 3D printing,CNC Machining(plastic and metal),Silicone Mold Vacuum Casting,Reaction Injection Molding(RIM),Sheet Metal fabrication and surface finishing.
The tolerance reach +/-0.02-0.1MM
if you have projects, just send me 3D files with STEP,IGS,X_T format,we will quote price to you with fast time,also we will sign NDA contract to keep secret of your design.
Why choose us?

1. we have competitive price with high quality.

2. we provide one-step solution for you,

   1)we do rapid prototyping model for pre-product testing and exhibition.

   2)we do mass production for you.

   3) we have worked with transportation company.

3. we are exporting moulds and products to all over the world .



The service we provide:

1, Industrial design

2, CNC plastic/metal prototypes

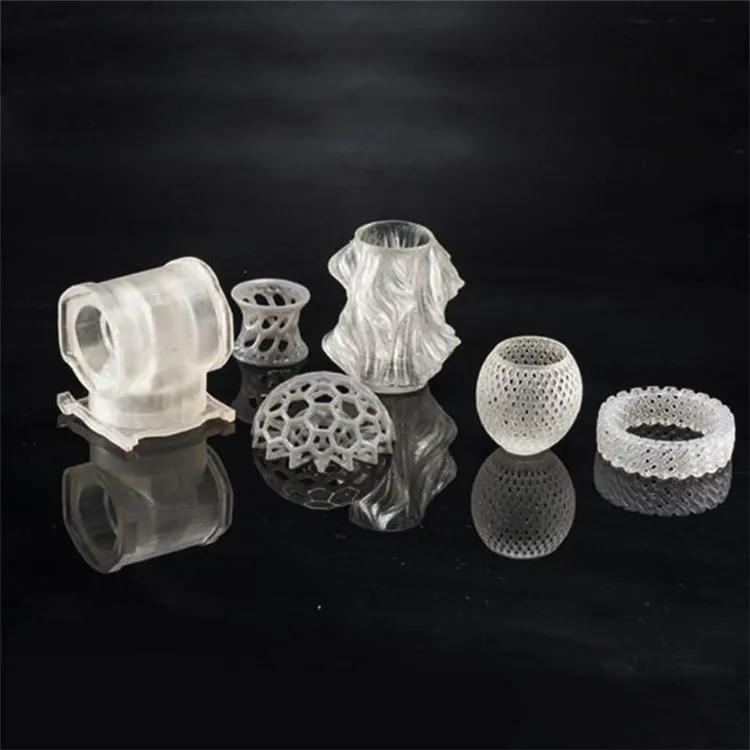

3, SLA/SLS service

4, Vacuum casting/vacuum forming (Silicon Mould)

5, CNC Aluminum/Brass/Copper/Bronze CNC machining/machined parts

6, Injection mold &Plastic Injection

7, Low volume production

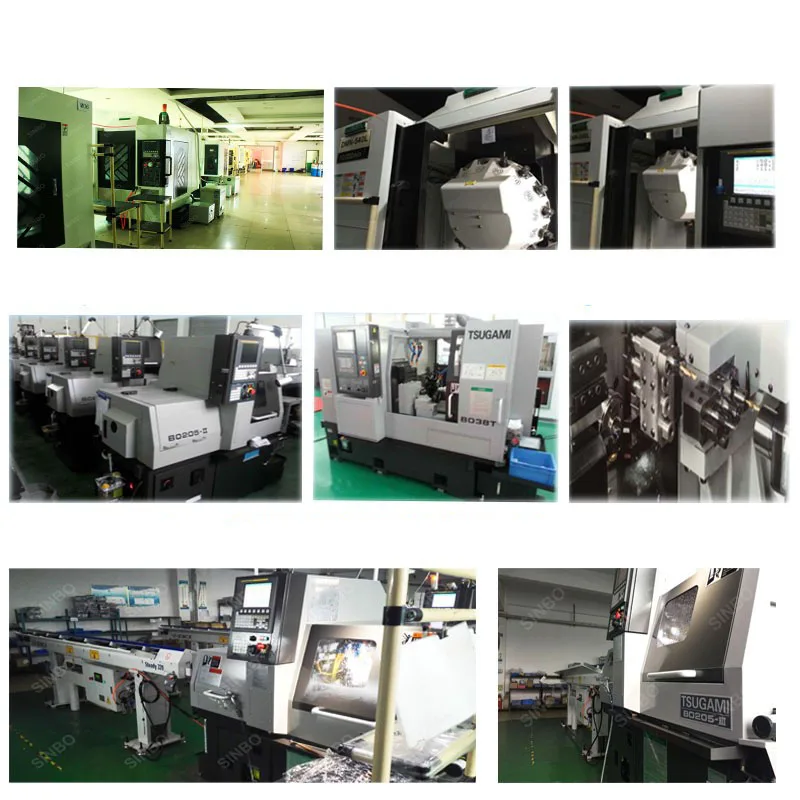

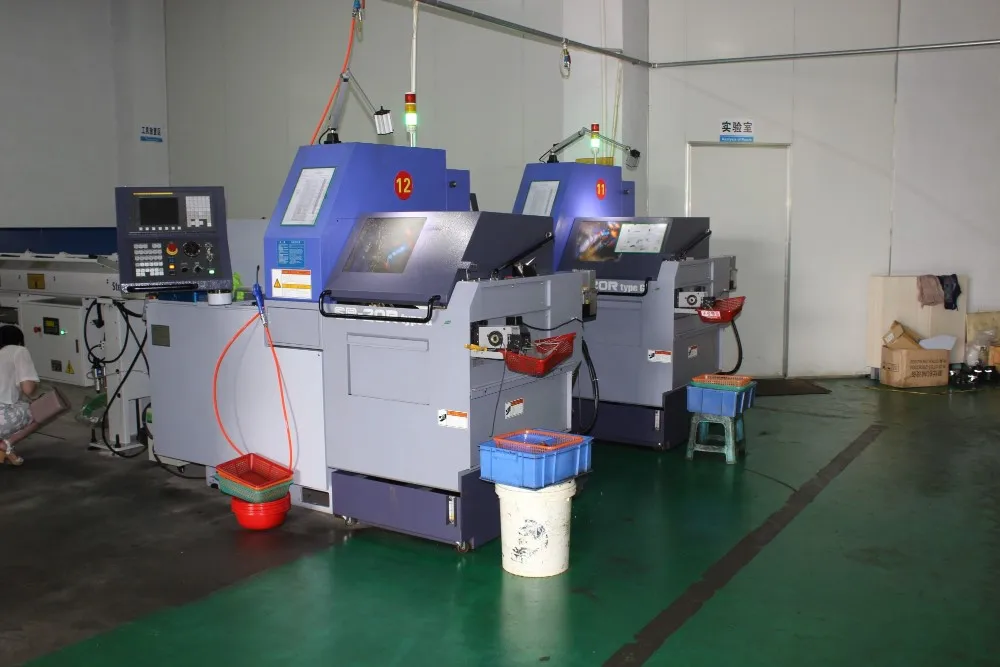

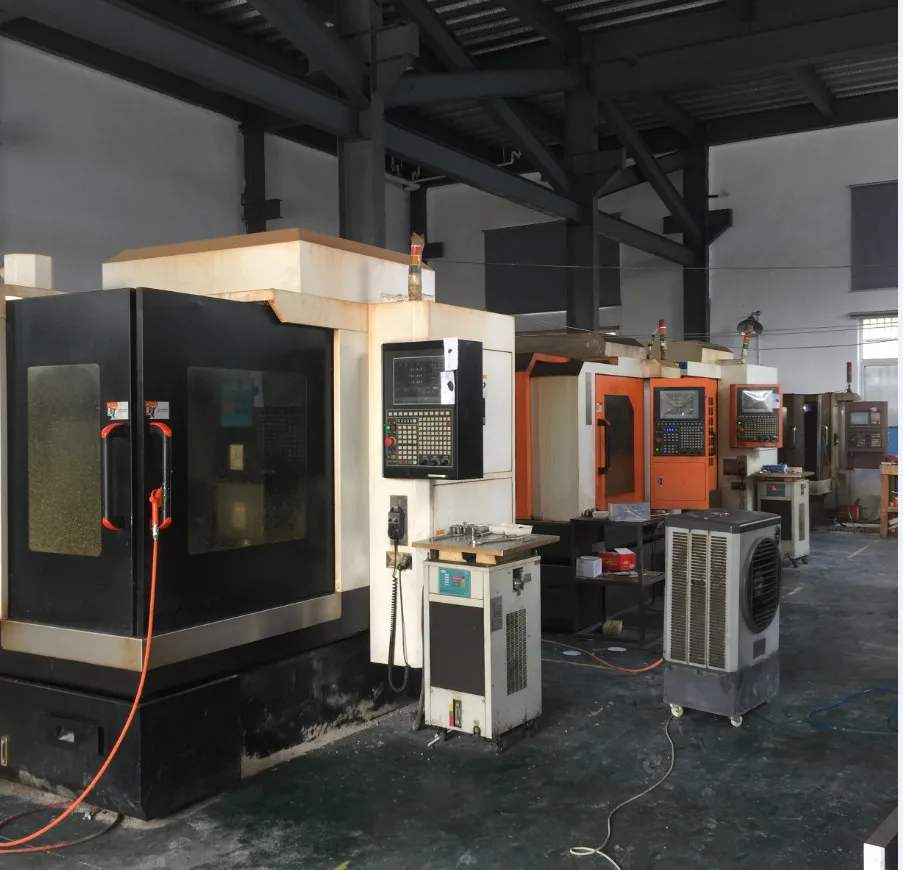

Factory Show







And if you want to have a visit to our factory, please contact us without hesitation !
Contact Personangela
Emailangela " @ "prototyping-china.com
Skypeshiny-dong
Wechatfutongda888
Mobile+86 135 3765 7894
Why choose us?



  A) Before sales Service

  • 24hour online consult
  • Sample support
  • Detailed technical 2d and 3d drawing design
  • Free pick up at hotel/aitport to visit Feiya factory
  • Quickly and professional response on quotation and technology

B) Production period service

  • Technical 2d and 3d drawing submit to double check details and discussion
  • Quality inspection report submit,guarantee the accuracy
  • Installation solution and maintenance instruction



C) After sales service

  • Provide the usage advice and Guide, remote assistance
  • 16 Years quality Guarantee
  • Any quality problems replace freely
