Euromicron Mould quick delivery plastic enclosure customized for electronic components

Euromicron Mould quick delivery plastic enclosure customized for electronic components
  • Euromicron Mould quick delivery plastic enclosure customized for electronic components
  • Euromicron Mould quick delivery plastic enclosure customized for electronic components
  • Euromicron Mould quick delivery plastic enclosure customized for electronic components
  • Euromicron Mould quick delivery plastic enclosure customized for electronic components
  • Euromicron Mould quick delivery plastic enclosure customized for electronic components

Euromicron Mould quick delivery plastic enclosure customized for electronic components

By using quality-approved materials, Euromicron Mould plastic enclosure is manufactured under the guidance of our experts. The product is well-known for its high printing speed
Get the latest price
Quantity Needed:
Pieces
E-mail:

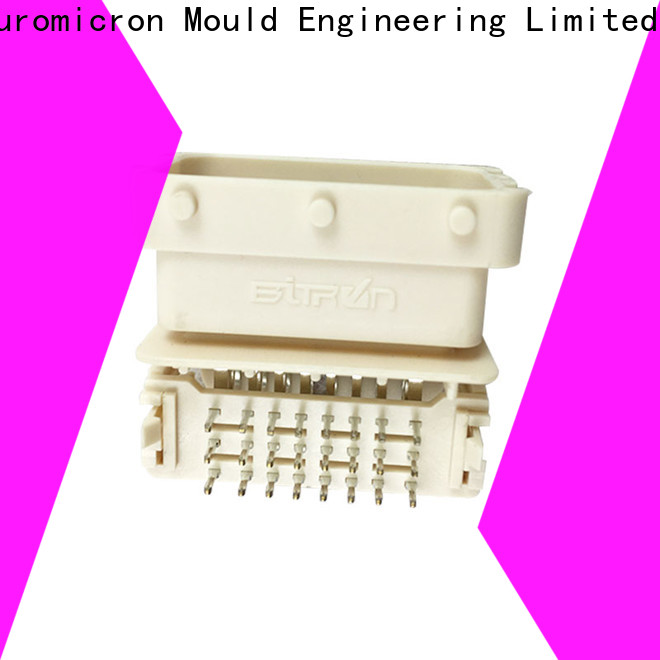

Euromicron Mould quick delivery plastic enclosure customized for electronic components-1
Euromicron Mould quick delivery plastic enclosure customized for electronic components-2


◇◆ Product parameters


Part Name:Electronic connector
Part size:45*39.5*21mm
Raw Material:PA9T30GF
Color:RAL9005,Black
Mould Cavity No.:1*4
Injection gate:Hot runner
Surface finished: VDI3400-33
Core &Cavity steel:1.2344,hardness 48~52HRC
Mold component standard:HASCO or equivalent
Injection machine size:250T
Cycle time:40S
Mold life:100000 shots
Customer:Bitron
Export:Italy


◇◆ PRODUCT FEATURES
A connector shell was supposed to be molded in glass-fiber-reinforced,flame-retardant nylon.
Euromicron Mould quick delivery plastic enclosure customized for electronic components-3

This connector include two different parts(upper and lower halves),were to be produced in a single mold.Prior to the start of production,the question arose as to whether a second gate might not be required to fill the part.To avoid weld lines and entrapped air.however,it might also be necessary to use only a single gate.This flexibility as to gating was supposed to be possible simple by switching a hot runner nozzle on or off.A further difficulty resulted from the small amount of space in which  the gates were to be located on the face of the molded part.All of these requirements were satisfied through the particular arrangement of the conductive,internally heated hot-runner system.

Euromicron Mould quick delivery plastic enclosure customized for electronic components-4

Mold design-We made this mold with four cavity.Runner system consists of a heated sprue bushing,a hot-runner manifold and four hot-runner nozzles.The hot-runner nozzles have not been installed parallel to the longitudinal axis of the mold,but rather at an angle.In spite of the unfavorable geometric relationships,it is possible to gate each part on its face in this manner.This arrangement is possible,because the solidified melt in the outer regions of the hot-runner manifold and nozzle channels precludes any possibility of leakage.Each of the hot-runner nozzle is individually controlled and can thus be switched on or off as required.It is thus possible to fill the part through either on or two gates.These measures alone,however,would not have been adequate to vary the gating possibilities.Attention also have to be given to the hot-runner manifold to ensure that no melt stagnated at continuously high temperatures in the runner channels when the various gating possibility were being employed.




While manufacturing Euromicron Mould optical communication equipment, only the safe material is chosen. With comprehensive dust-proof protection, it is suitable for all kinds of workshop environments
Euromicron Mould optical communication equipment is the one you should never miss as it is with practical and aesthetically-pleasing design. This product is widely used in offices and industries
Euromicron Mould plastic enclosure comes in different eye-catching designs. This product is notable for precise positioning
As per the current industry standards, Euromicron Mould plastic enclosure is manufactured using optimum quality material and sophisticated technology. Its reasonable button layout offers convenient operation
Euromicron Mould optical communication equipment is fabricated combining with the simple and modern design concept. With comprehensive dust-proof protection, it is suitable for all kinds of workshop environments
This product yields best-in-class thermal performance. The fiber-reinforced materials used with innovative designs carry improved thermal performance of this product. The product has a very sensitive and high precise scanner, which ensures high distinguishability
