Euromicron Mould loudspeaker automobile parts source now for businessman

Euromicron Mould loudspeaker automobile parts source now for businessman
  • Euromicron Mould loudspeaker automobile parts source now for businessman
  • Euromicron Mould loudspeaker automobile parts source now for businessman

Euromicron Mould loudspeaker automobile parts source now for businessman

The product is precisely produced with the exact color I require. There is no chromatic aberration. Said one of our customers. Its design is supported by the professional project engineers who follow up the specific progress
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. The production process of Euromicron Mould automobile parts is constantly monitored by special personnel to ensure its smooth operation. So the pass rate of finished product can be ensured. Company logo can be printed on the surface of the product
2. The product is precisely produced with the exact color I require. There is no chromatic aberration. Said one of our customers. Its design is supported by the professional project engineers who follow up the specific progress
3. With a process of quality control, the quality is guaranteed to be high quality.Vacuum packing method is adopted for the product to avoid mold rusting during transportation

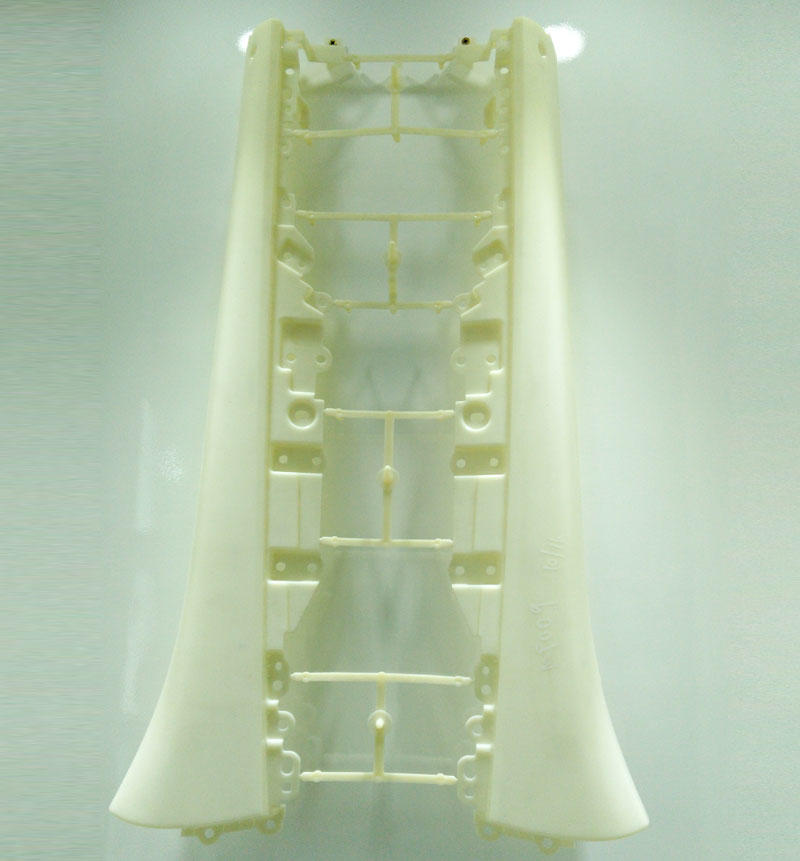

This trail mold was used to injection Auto door plastic part in different thermoplastics, such as  PC/ABS blend and modified PA, elastomer-modified PC, PC/PBTP blend and modified PBTTB for a number of manufacturing companies.
The two-cavities mold for Auto door plastic part consists essentially of sprue half with the hot runner system and the ejector mold half. Pillars and bushings serve to guide the two mold halves. When the mold is closed. The mold halves are fixed relative to each other via angled surfaces and wear plates.
Gating and temperature control. The molding compound passes through a sprue bushing into the hot runner made of steel (material number 1.2311). From four heated nozzles, also of steel (material number 1.2162), it passes through cold feed channels to the various gates of the mold cavity. The gates measure 15 mm X 1.2 mm.

Euromicron Mould loudspeaker automobile parts source now for businessman-1

The hot runner manifold block is heated by cartridge heaters which are pressed against it by laterally bolted cover strips. The distributor lies in a recess of the feed-side mold plate and is pressed by the hot runner covering plate against the nozzles via spacer rings. Guide components prevent the manifold from twisting about the locating device. They also allow the manifold to expand and contract during heating and cooling. The hot runner nozzles are each centered in their locator bores in mold plate by means of three contact surfaces in such a way that they do not experience the expansion and contraction undergone by the manifold. The contact surfaces facing the manifold are convex. Transfer areas for the molding compound are sealed with steel O-rings. The ends of the hot runner nozzles on the mold side have conical bores. In this region. Their exteriors fit snugly into the mold platen to ensure good thermal conduction and thus rapid cooling of the sprue formed therein.

On mold opening, the frozen sprue separates from the hot melt in the manifold at the narrowest point of the conical bore. The nozzles are heated with heating collars. Two temperature probes are attached to each nozzle to monitor and regulate the temperature. The cartridge heaters in the manifold are arranged in seven groups, each of which is individually regulated. The cartridges have an installed rating of about 40 KW.
The melt pressure in the manifold is registered by pressure sennsor P. and that in the cavity, by sensor P. and cann therefore be used for control purposes. The temperature-control system consists of a network of bores in the two mold hales. Heat sensors T measure the temperature in the mold.
Ejection of the Auto door plastic part
When the mold opens, the molded part remains in the moving half. The sprues are also held in place by sprue pullers above the ejector pins. As soon as the stripper plates are pushed forward by the ejector of the machine, the ejector pins push the molded part along with the sprues from the mold core. On mold closing, the ejector plates and thus also the ejector pins are pushed back by ejector-plate return pins. The mold plate is supported by rolls projecting right through the ejector plates to the clamping plate.



Company Features
1. Euromicron Mould Engineering Limited is a reliable manufacturer that provides trusted plastic pellets for injection molding by integrating scientific, technical and commercial expertise.
2. The factory of Euromicron Mould has a rich technical base.
3. Euromicron Mould has been earnestly implementing the responsibility as a leading automobile parts manufacturer. Inquire!
The design of Euromicron Mould plastic pellets for injection molding covers many essentials in the fashion industry. The essentials mainly include color, silhouette, proportion, fabric, texture, sampling flat pattern, cutting and so on. The package of this product is highly customizable
Euromicron Mould plastic pellets for injection molding goes through complete production processes. They are the following aspects: CAD construction design based on feet shape, pattern making, materials cutting, stitching, and final assembly. The product is extremely anti-scratch and anti-shock
Euromicron Mould plastic pellets for injection molding is designed under the combination of various factors. They are lines, body proportion, style, color and texture, aesthetic sense, and others. This product is available in a variety of sizes to fit different phone models
A comprehensive performance testing for Euromicron Mould automobile parts is offered. The testing includes rubbing fastness, tearing strength, colorfastness, washing stability, just to name a few. This product has been exported to more than 130 countries
The design of Euromicron Mould automobile parts takes into considerations many things. They are the comfort, cost, features, aesthetic appeal, size, and so forth. This product has been exported to more than 130 countries
The product is built to last. It does not prone to have fatigue failure even it goes through a number of repeated loading and unloading cycles. It provides a reduction of reflection as light passes through the phone
