Euromicron Mould high efficiency plastic housing for electronics corporation

Euromicron Mould high efficiency plastic housing for electronics corporation

Part Name
Gateway
Part size
175*136*32mm
Raw Material
ABS+PC
Color
RAL9010,Whit
Mould Cavity No
1*1
Injection gate
Hot runner with pin point gate
Surface finished
Mirror Polishing
Product Comparison
injection mold is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.Euromicron's injection mold has better performances in the following aspects.
Company Advantages
1. Euromicron Mould plastic housing for electronics is manufactured using the optimum quality raw material and advanced technology.
2. Through the whole process of strict quality inspection, we ensure product quality to meet industry standards.
3. It has widely found its applications in the industry because of these fine properties.


Part Name:Gateway
Part size:175*136*32mm
Raw Material:ABS+PC
Color:RAL9010,White
Mould Cavity No.:1*1
Injection gate:Hot runner with pin point gate
Surface finished: Mirror Polishing
Core &Cavity steel:1.2344,hardness 48~52HRC
Mold component standard:HASCO or equivalent
Injection machine size:180T
Cycle time:35S
Mold life:300000 shots
Customer:HEKATR@N
Export:Germany


◇◆ Summary for project running

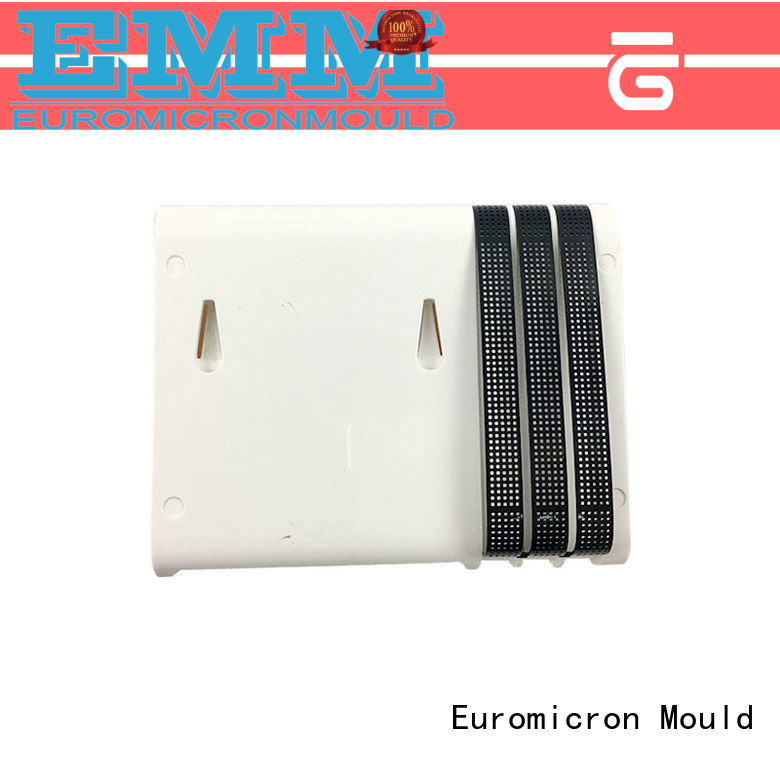

This product used for electrical appliance,the gateway case and grid.Plastic raw material need in inflaming retarding and heat resistant.

We carried out first trial shot on 40th day,little longer than planed.Since YUDO hot runner system came out of expected date,one week late.Three trial shots for samples production,and finished whole project in 50days.Manufacture schedule,samples delivery and mold shipment date ran as planing,within customer’s request.
Both parts critical surface need in high polishing,mirror grade,no any marked or scratch allowed.When production,have to take out by robot hand,and cover PE film for protection. Silkscreen also made by EMM factory.

At first trial shot,case part came out with obvious sink mark and scratch on side surface. The ribs inside are too thick cause sink mark,and no draft angle on side surface cause scratch when mold open.Finally We cut rib material solved sink mark problem.But no draft angle allowed on side surface,we had to add two sliders on both side,to ensure all outside surface look glossy.
The grid part has many small window and only 0.6mm thick.We found flowing mark at each window corner and short shot problem at first trial shot.Then we suggested change high polishing surface to fine texture,VDI3400-33,also change injection gate location,from both side for filling.Customer confirmed and part came out look good.




Company Features
1. Known as a leading manufacturer for electronic parts , Euromicron Mould Engineering Limited wins wide oversea market.
2. Euromicron Mould tries to ensure the quality of plastic enclosure .
3. Favored by more customers, Euromicron Mould is very confident to be a lead of plastic enclosure box industry. Contact! Euromicron Mould Engineering Limited strives to satisfy all needs of clients which include pres-sales service, technical support and after-sales service. Contact! To achieve a breakthrough in plastic housing for electronics , it is essential for Euromicron Mould to have determination and preservance. Contact! Euromicron Mould Engineering Limited sincerely hopes our communication processor can bring great value to our customers. Contact!
