Product Name
Electronic connector
Product size
35*29.5*26mm
Material
PA9T30GF
Cavity
1*4
Cycle time
40S
Customer
Bitron
Export
Italy
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details
Euromicron pursues excellent quality and strives for perfection in every detail during the production.Euromicron has superb technology and strict quality control system. Besides, we are committed to the introduction and update of production equipment. We can provide high-quality cnc service for customers. die casting mold, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.
Company Advantages
1. The well-designed electronic parts makes it more special than other similar products. Its quality has been certified under ISO14001:2004 and CE
2. The plastic enclosure is very convenient and easy to handle for its high performance. Its appearance is stylish and creates a stereoscopic sense
3. Apart from precision molded plastics, we also pay attention to overmolding electronics to ensure the quality. The product is mainly exported to Europe and North America
4. Euromicron Mould Engineering Limited will do our utmost to provide relative certificates about our plastic prototype if necessary. The product is capable of withstanding high torque

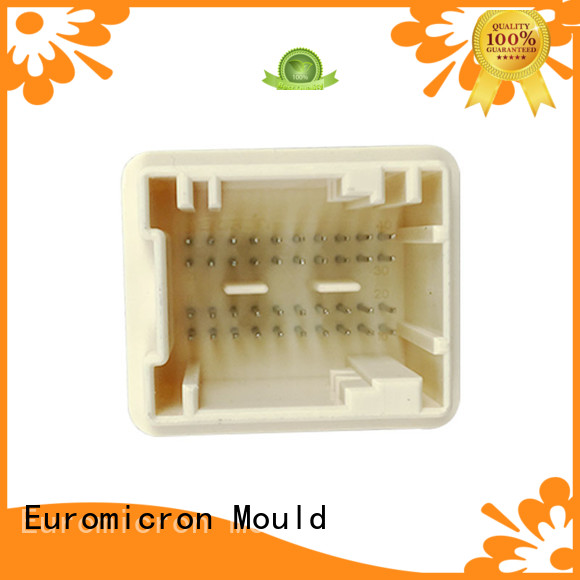

This connector was supposed to be molded in glass-fiber-reinforced,flame-retardant nylon.
It came with size 35X29.5X26mm,with 40pcs pins in center.High rib,hooks and boss on round side.One four cavity mold should employ a mold base dimension 250*230mm,with 280mm height.Steel grade 1.2767 is used for the mold inserts,while grade 1.2312 is employed for mold plates as well as the ejector plate.Steel grade 1.1730 is mused for remaining plate and rails.Thermal insulating plates,which are available in sizes to match the standard mold plates,serve to insulate the mold from the machine platens.



◇◆ Mold design


This part is simple,but need to ensure 40pcs pin locate properly when plastic filling,specially under high pressure flow.To save production cost,we need to cut down cycle time.So two or three even more over-mold inserts need.Injection machine operator no need to set pin one by one into mold.Just need to set in additional insert before molding.When mold open,just need put whole insert with pin into core.Of course,operator need to take part with insert together.The hooks on both sides are undercut,need design for slider or angle lifter.But no slider split line allow in middle surface.So split line should be set on radius of corner.

The molded part is ejected via knockout pins.In addition to providing for ejection.these pins serve to vent the cavity during filling.It is in part for this reason that the knockout pins are located beneath ribs and other deep section of the part.where entrapped air is to be expected.The mold filling pattern during injection of the molding compound as well as the mechanical and thermal aspects of the mold design were simulated and established during the design phase with the aid of appropriate computer programs.
