Part Name
switch
Part size
92.8*61.2*8.6mm
Raw Material
ABS
Color
RAL9010,White
Mould Cavity No
1*4
Injection gate
Cold runner with sub gate
Surface finished
Polishing #600
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
die casting mold developed and produced by Euromicron is widely used. The following are several application scenes presented for you.Euromicron is committed to producing quality cnc service and providing comprehensive and reasonable solutions for customers.Euromicron produces injection mold in strict accordance with national quality standards. We can guarantee the products are characterized by wear resistance and good obdurability, and long-lasting great performance.
Company Advantages
1. Professional design: Euromicron Mould precision molded plastics is professionally designed by our team of talented designers who came up with the ideas and then these ideas are modified according to market feedback. Thus, the product comes out with professional designs. The product has an output of 50 sets per month
2. The quality oversight of qualification activities in manufacturing area is emphasized. It is characterized by a very good surface finish
3. In Euromicron Mould Engineering Limited, defected electronic parts will not be loaded in containers and sent to our customers. Made of well-selected materials, the product has a long service life



◇◆ Product parameters

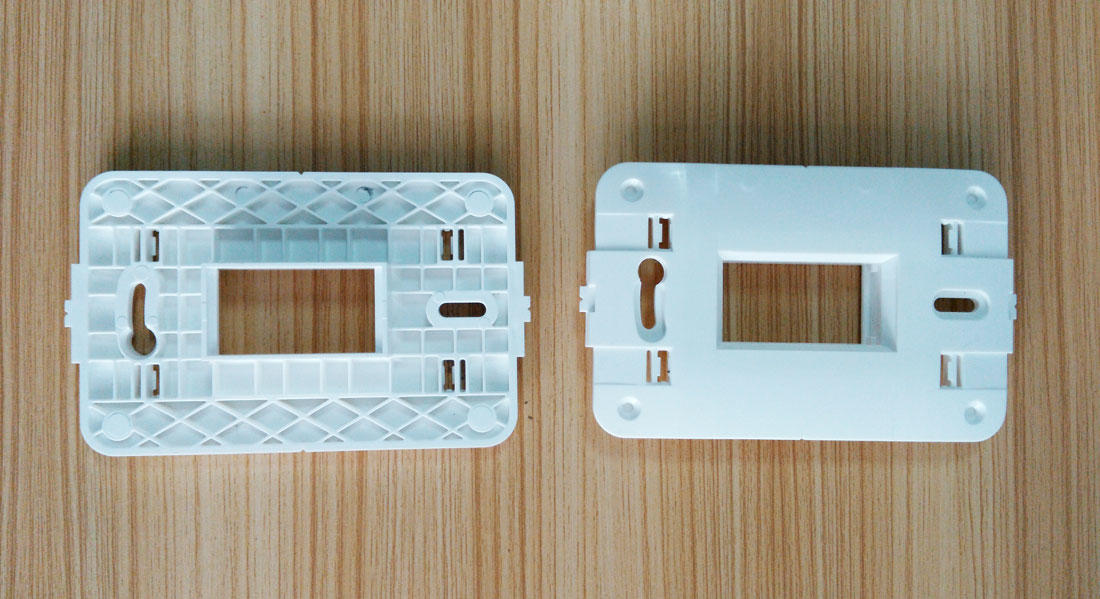

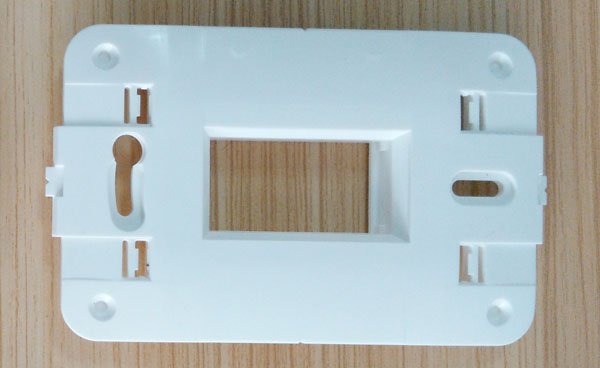

Part Name:switch
Part size:92.8*61.2*8.6mm
Raw Material:ABS
Color:RAL9010,White
Mould Cavity No.:1*4
Injection gate:Cold runner with sub gate
Surface finished: Polishing #600
Core &Cavity steel:M310,hardness 52~55HRC
Mold component standard:DME or equivalent
Injection machine size:250T
Cycle time:35S
Mold life:300000 shots
Customer:Siemens
Export:Uruguay


◇◆ Summary for project running
This product used for electrical appliance,the light switch.Plastic raw material need in inflaming retarding and heat resistant.

We carried out first trial shot on 35th day,twice trial shots for samples production,and finished whole project in 45days.Manufacture schedule,samples delivery and mold shipment date ran as planing,within customer’s request. Due to many thin and high side ribs,part stick on core side tightly.Mold need smooth polishing and need enough ejection pins and as big as possible.Sink mark problem on surface easily to cause,due the part thickness is too thick and not equal,we solved it by adjusting injection parameter.Four hooks distance need to be molding in high precision location,Because they will assemble to bottom shelf.To make it work well,we cut material at first trial shot.After checking first samples,made correction to mold.So that the secondary samples met assembly requirement.

Another problem we met on first trial shot was the ribs short shot.Because they were very thin and high,plastic filling easily to get cold when injection.Later we had a discussion,decided to change the side gate to two sub gates,change core cooling water to hot oil,100℃,and add injection pressure,so that filling time shorten a lot,finally we got excellent part. This experience also can apply to similar product with thin and high ribs.
