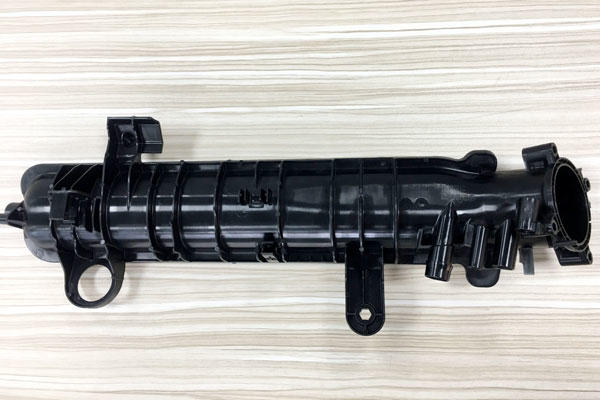

Auto tank for the automobile Mercedes Benz

Auto tank for the automobile Mercedes Benz

Auto tank for the automobile Mercedes Benz

Product Name
Auto tank
Product size
495*76*83mm
Material
PA66+30%GF
Cavity
1*2
Cycle time
41S
Customer
Mercedes Benz
Export
Germany
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, Euromicron's die casting mold is highly competitive in the domestic and foreign markets.The products we produce are in strict line with the . Their high quality is guaranteed through reliable material sourcing and strict QC methods.Compared with other same kind of products, die casting mold produced by Euromicron has the following advantages and features.
Enterprise Strength
  • Our excellence comes from the efforts of staff from such departments as R&D department, sales department, design department and production department. There are designers, R&D experts, and after-sales personnel in our company.
  • Euromicron carries out strict checks and continuous improvement on customer service. We gain recognition from customers for the professional services.
  • Euromicron always sticks to our tenet of "quality comes first" by focusing on the quality control, service improvement, and fast response.
  • We have been dedicated to the manufacturing of cnc service for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
  • Since the establishment, our sales network has been continuously expanding to where our sales service is highly appraised by customers at home and abroad. In future, we would like to establish our marketing network overseas and expand the business further.
Company Advantages
1. Choosing a set of well selected injection mold components material for top injection molding companies endows it with better properties.
2. The product distinguishes itself from competitors with long-lasting performance and longer service life.
3. It is extensively acclaimed in the market owing to stylish patterns and designs.
4. Euromicron Mould has established a perfect process and quality management system from research and development to production.


Auto tank for the automobile Mercedes Benz-1
Auto tank for the automobile Mercedes Benz-2



◇◆ Product Features


Auto tank for the automobile Mercedes Benz-3

The product is applied in the automobile Mercedes Benz. It is a part of the tank. It works in the high temperature environment. So it is made of the material PA66 with 30% glass fiber. This is a special heat-resistant material. Also it is a high strength engineering material. This composite materials have superiorities in size stability, formability, stretching resistance and impact resistance. This a long product. The length is 495mm. width is 76mm, height is 83mm. it is easy to deflect after injecting. So it is very important to solve deflect issue in the mold.


Auto tank for the automobile Mercedes Benz-4

The mold is a two-cavities design with hot runner system. The valve gate of the hot runner system is directly on the part. We did mold flow analysis before mold design. Through technical analysis, we can estimate the deformation of the part and find some problems of injection molding. So that we saved some steel for late adjustment about deformation.Meanwhile, we did Some preventive measures for possible problems.

Auto tank for the automobile Mercedes Benz-5

In this way, we can optimized the mold after trailing shoot until the molding was good. The structure of the part was a lot complex. There were some bosses and hooks at the side of the product. It needed several sliders to formed them. For cooling system, it was very important too. Good cooling system can decrease the deformation of the product and the cycle time. So we designed several sufficient cooling loops for this mold. Not only cooling loops were design in the core insert and cavity insert, but also cooling loops were designed in the sliders and the mold plate.

Auto tank for the automobile Mercedes Benz-6

In that case, the temperature of the mold can be controlled well. And the product was very stable. The cycle time was about 41 seconds. By controlling the valves of the hot runner system, we can control the volume of each part and the balance of flowing. Because of the plastic material including 30%glass fiber, the steel of forming insert must be harden steel. We choose to use imported steel 1.2344 which hardness was about 52 HRC. The mold ran well. The mold run over 3 hours for testing before delivery to customer. Customer was satisfied the mold.
